High Level Link Control (HDLC) Protocol

The HDLC protocol is a general purpose protocol which operates at the data link layer of the OSI reference model. The protocol uses the services of a physical layer, and provides either a best effort or reliable communications path between the transmitter and receiver (i.e. with acknowledged data transfer). The type of service provided depends upon the HDLC mode which is used.

Each piece of data is encapsulated in an HDLC frame by adding a trailer and a header. The header contains an HDLC address and an HDLC control field. The trailer is found at the end of the frame, and contains a Cyclic Redundancy Check (CRC) which detects any errors which may occur during transmission. The frames are separated by HDLC flag sequences which are transmitted between each frame and whenever there is no data to be transmitted.

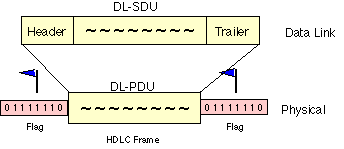

HDLC Frame Structure showing flags, header (address and control), data and trailer (CRC-16).
